Bunter Post System

Bunter Post System


The Bunter Post is used to lock embossing or foil stamping dies onto a bunter heated chase. The bunter post is screwed into a heater or removeable front plate with the flat head screw.  The adjusting screws securely lock the die into place.  Standard height bunter posts can generally be used on all U.S. presses. Low height bunter posts are usually used on presses outside the U.S., such as Heidelberg's.  Please check the thread size of your heater before ordering bunter posts.  We manufacture our bunter posts in West Babylon, NY USA.

Bunter Products

Description

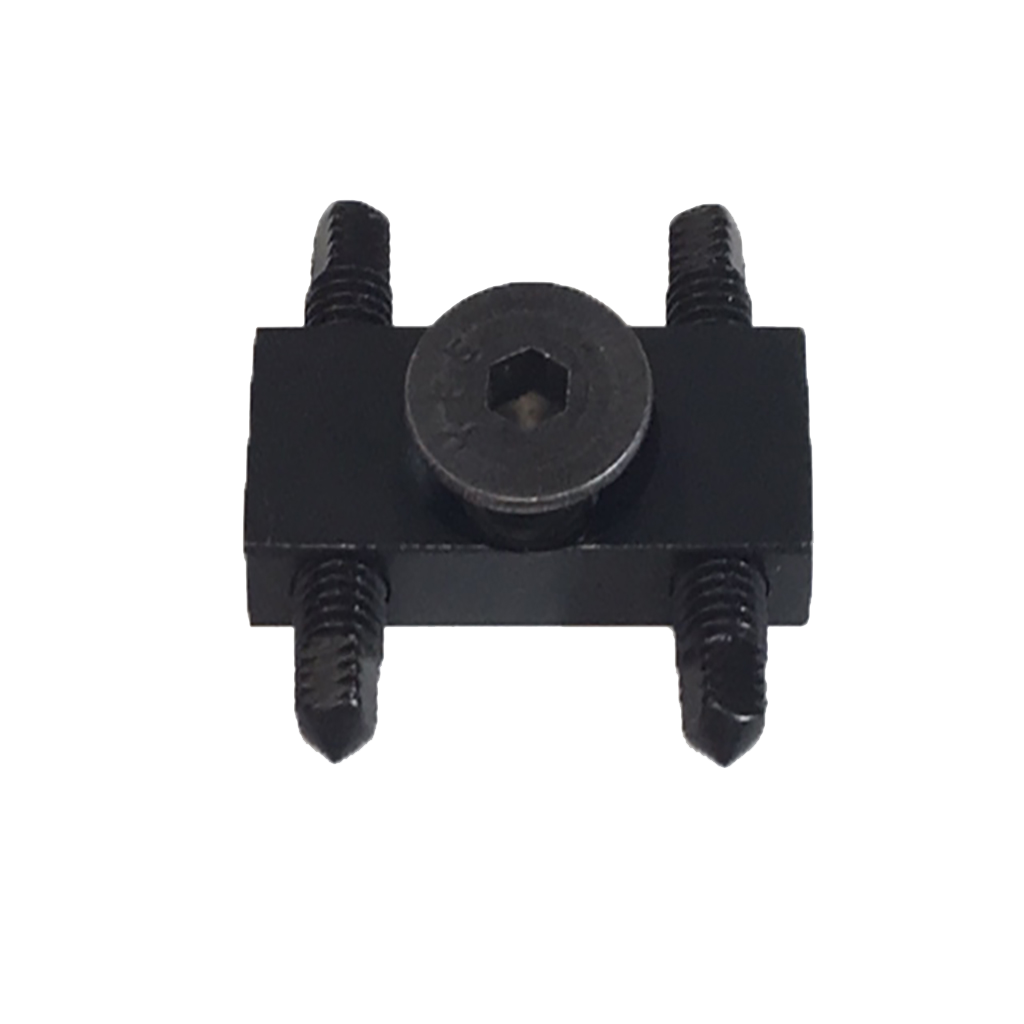

Bunter Posts Complete

Standard - .236 (6mm) Height with 1/4 X 28 Flat Head Machine Screw


Low Height (Inch) - .197 (5mm) Height with 1/4 X 28 Flat Head Machine Screw


Low Height (Metric) - .197 (5mm) Height with 6mm Flat Head Machine Screw

Standard:
Part #200-245
Low Height-Inch:
Part #200-250
Low Height-Metric:
Part #200-255



Bunter Posts Body Only (No screws are included)

Standard - .236 (6mm) Height (Used with 1/4 X 28 Flat Head Machine Screw )


Low Height (Inch) - .197 (5mm) Height (Used with 1/4 X 28 Flat Head Machine Screw )


Low Height (Metric) - .197 (5mm) Height (Used with 6mm Flat Head Machine Screw )

Standard:
Part #200-246
Low Height-Inch:
Part #200-251
Low Height-Metric:
Part #200-256



Bunter Adjusting Screws

Standard - 10-32 Thread

Low Height - 4mm Thread (Used with both low height bodies inch & metric)

Standard:
Part #200-247 (1/4 X 28 Flat Head Machine Screw )
Low Height:
Part #200-252 (Both low height bodies use the same part number)



Bunter Flat Head Screw

Standard - 1/4" Thread

Low Height (Inch) & (Metric) - 6mm Thread

Standard:  Part #200-248
(Used with part numbers #200-246 and #200-251 )
Low Height:  Part #200-253
(Used with part number #200-256 )

Bunter Thin Line Wrenches

Standard - Used on all Standard Bunter Posts
Part #200-269


Low Height - Used on all Low Height Bunter Posts
Part #200-268
